产品简介

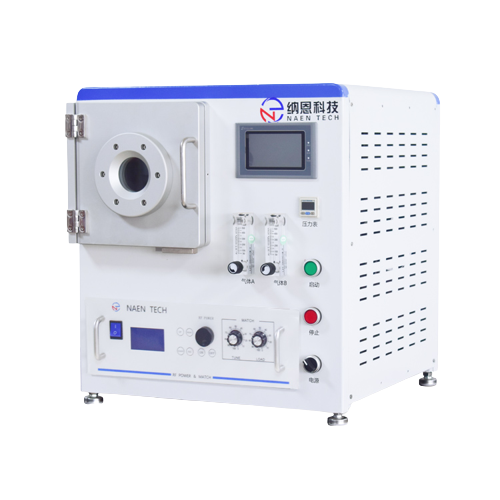

NE-Q05 is a small quartz vacuum plasma treatment system which is dedicated to cleaning and surface activation of a wide range of materials including polymers, metals, glass and ceramics, delivering optimum adhesion properties of otherwise difficult to bond materials.
产品参数
| Overall dimensions | Size | 510mm(L)×480mm(W) ×540 mm(H) |
| Weight | 50KG(Including vacuum pump) | |
| Plasma generator | Power | 0-200W(Adjustable) |
| Frequency | 13.56Mhz, Solid-state RF power supply | |
| Vacuum chamber | Cavity material | Quartz |
| Discharge Mode | ICP | |
| Cavity volume | 5L | |
| Tray | 1 quartz tray | |
| Cavity size | Φ150（W）×280（D）mm | |
| Gas Control | flow value | 0-500ml |
| Gas channel | 2 channels |
产品特点
清洗时间短
能耗小
无污染
温度低
精度高
应用广
